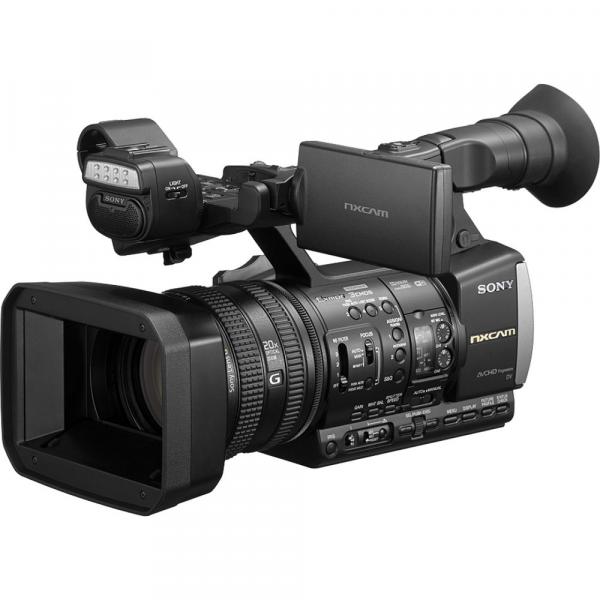

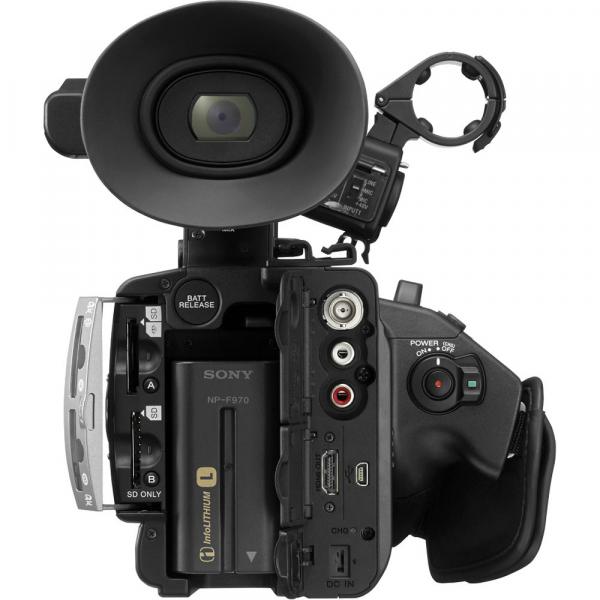

The HXR-NX3/1E NXCAM Professional Handheld Camcorder from Sony is designed for European Video Standards and brings high-quality performance, adaptability, and ease of use to a compact, handheld body. The camcorder features a 3-chip Exmor sensor with Full HD 1920x1080 resolution, Sony G lens with 20x optical zoom range, and a 40x Clear Image Zoom for 35mm equivalent focal lengths up to 1152mm. It also features Wi-Fi connectivity for transferring video files from the camcorder to mobile devices, as well as controlling camera functions from your smartphone or tablet. A network-friendly 720p, 3 Mbps MP4 recording option allows for easy transfer and compatibility with computer, smartphones, tablets, and other mobile devices. The HXR-NX3/1E records video using the AVCHD 2.0 format, with framerates up to 50p for recording smooth motion. 50i and 25p modes are also available. You can also record in the DV format, letting you fit the camcorder into existing DV workflows. Media is recorded to two SD memory card slots. You can choose to record simultaneously to both cards, or use the relay mode which switches recording automatically to the second memory card when the first one is full. The two card slots can be controlled independently from two separate record buttons. An HDMI output connector provides uncompressed 8-bit 4:2:2 signals while shooting for use with external recorders. The Sony G lens provides high image quality while offering 20x optical zoom with a 35mm equivalent focal range of 28.8mm to 576mm. When more telephoto reach is needed a 40x "Clear Image Zoom" allows you to reach an 35mm equivalent focal lengths up to 1152mm. The camcorder records using the AVCHD 2.0 codec for Full HD 1920x1080 resolution video at frame rates of 25p, 50i, and 50p. The camcorder also offers 720/50p AVCHD capture, 2x slow motion and 60x quick motion recording, as well as standard definition DV recording. The two SD card slots enable simultaneous or relay recording. The HXR-NX3E/1E features three 1/2.8" Full HD CMOS sensors, one-sensor for the Red, Green, and Blue color channels. This means high detail and texture, even on high-contrast colors. And, thanks to Sony's Exmor technology, the CMOS sensors deliver low noise and high sensitivity for low-light shooting situations. Use your smartphone or tablet as a remote viewfinder as well as a remote control for camera functions such as recording start/stop, zoom, iris, and touch auto focus. The Wi-Fi remote works with both iOS and Android devices. MP4 video streaming from the camera delivers up to 30 fps to your wireless device. Frame-rate will depend on the processor speed of the mobile device. For great versatility when shooting close-ups and interviews, the HXR-NX3 comes equipped with an LED video light. The light outputs 200 lux at 1.6 feet.
| Type | Professional Handheld Camcorder |
| Recording Media | 1 x Combination SD/SDHC/SDXC & Memory Stick Duo 1 x SD/SDHC/SDXC |
| Compatible Lenses | Fixed Lens |
| Lens Mount | Fixed Lens |
| Image Sensor | 3 x 1/2.8 |
| Pixels | Total pixels: 2.41MP ,, Effective pixels: 2.07MP |
| Pixel Unit | 2.410.000 |
| Aspect Ratio | 16:9 |
| Dust Deletion Feature | No |
| White Balance Settings | Preset (Outdoor:5600K), A, B |
| Viewfinder Type | 0.45 |
| Grid Display | Yes |
| Autofocus Type | AF-A |
| Focusing Modes | Auto Focus / Manual Focus |
| ISO Speed / Gain Range | -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30 dB, AGC |
| Shutter Speeds | 1/3 to 1/10,000 second |
| Camera Start-up Time | Approx. 0.2 sec |
| Built in Flash Type | LED |
| External Flash Settings | Yes, with hot shoe |
| Video File Format | HD: MPEG-4 AVC/H.2264 AVCHD 2.0 ,, SD: DV (AVI) ,, MP4: MPEG-4/H.264 (MP4 Wrapper) |
| File Size | HD PS (28Mbps): 1920 x 1080/50p, 16:9 ,, FX (24Mbps): 1920 x 1080/50i, 25p, 16:9, 1280 x 720/50p, 16:9 ,, FH (17Mbps): 1920 x 1080/50i, 25p, 16:9, 1280 x 720/50p, 16:9 ,, HQ (9Mbps): 1440 x 1080/50p, 16:9 1280 x 720/50p, 16:9 ,, LP (5Mbps): 1440 x 1080 |
| Frame Rates | 60fps |
| LCD Monitor | LCD monitor 640 x 480 x 3 (H x V x RGB) |
| Monitor Size | 3.5 inch |
| Monitor Pixels | Approx. 921,000 |
| Brightness Control | Yes |
| Display Format | Full HD |
| Highlight Alert | Yes |
| Quick Control Dial | Yes |
| Custom Controls (Camera Controls / Buttons Customization) | Yes |
| USB Terminal | mini-AB USB 2.0, mass storage/host |
| Video Out Terminal | HDMI // BNC |
| Power Source | Battery pack: 7.2 VDC ,, AC Adapter: 8.4 VDC |
| Battery Type | NP-F970 |
| Battery Life | Approx. 265 min with NP-F970 battery (video light On) |
| Playback Time | Approx. 2hours |
| Dimensions (W x H x D) | Approx. 6.9 x 7.60 x 15.5 |
| Weight | Approx. 5.60 lb (2.54 kg) with Lens Hood, EVF Eyecup, and NP-F970 Battery |
| Operating Environment Temp | 32 to 104°F (0 to 40°C) |
| Working Humidity | 75% |
